47657822

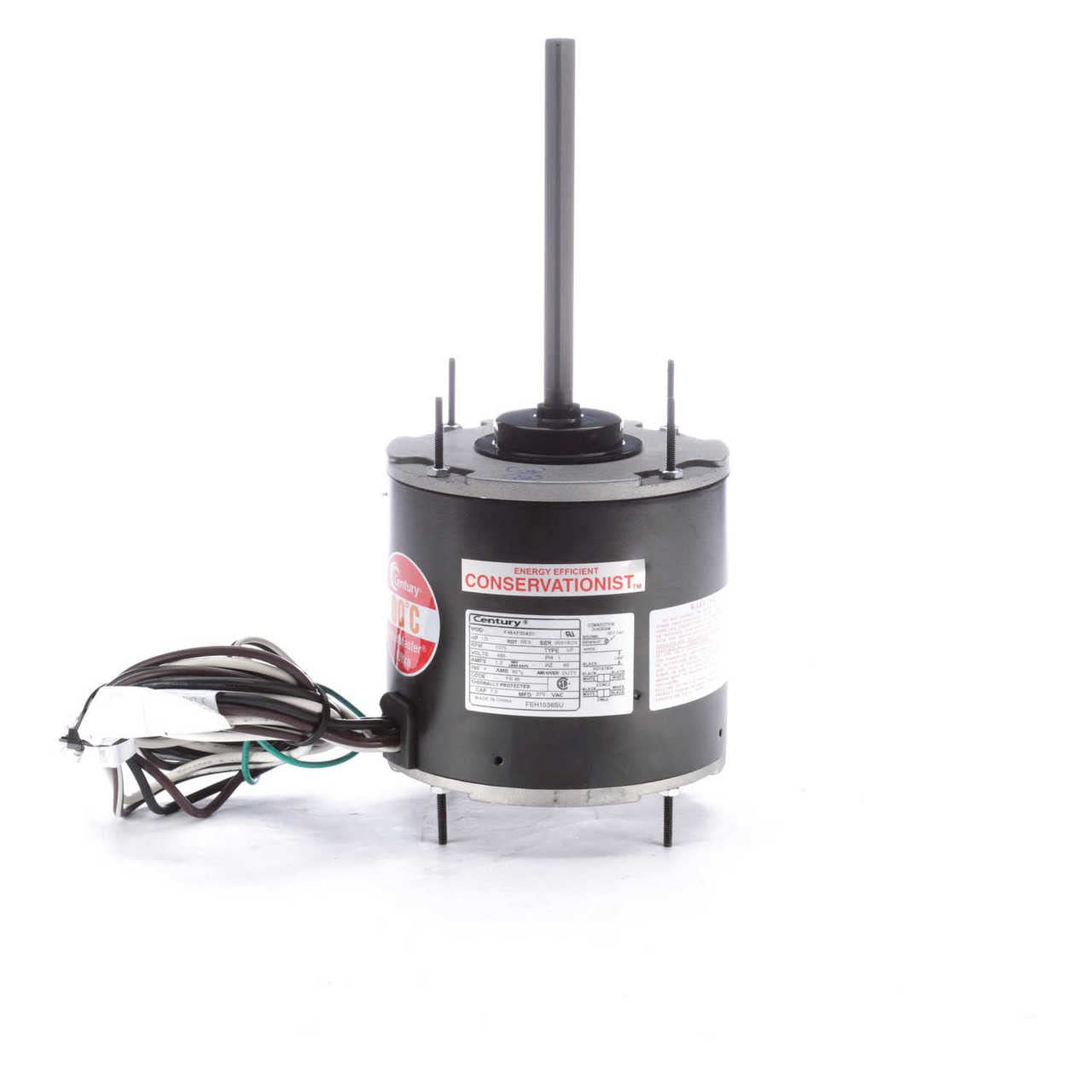

'Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1/3 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 460,48 Frame,Number of Speeds 1,Overall Length 11-3/4 In.,Shaft Length 6-1/2 In.,Shaft Orientation All Angle,Features Extended Thru-Bolts,Motor Shaft Rotation CW/CCW,Full Load Amps 1.2,Stud Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0,Bearings Ball,Max. Ambient Temp. 80 Degrees C'
Price For Each Motor Design Permanent Split Capacitor Item Condenser Fan Motor Motor Service Factor 1.00 No. of Speeds 1 Motor Application HVAC/R Motor Thermal Protection Auto Motor Enclosure Design Totally Enclosed Air-Over Motor Sub Application Condenser Fan Motor Shaft Rotation CW/CCW Phase 1 Hz 60 Features Extended Thru-Bolts
Standards UL Recognized (E46412), CSA Certified (LR43341) Voltage Compatibility 460, 208-230/460 Frame 48 Motor Mounting Position All Angle Motor Mounting Type Stud Voltage 460 Application Condenser Fan Shaft Length 6-1/2" Bolt Circle Dia. 5-5/32" Overall Length 11-3/4" RPM Range 1001-1100 Max. Ambient Temp. 80 Degrees C Lead Length 48" Length Less Shaft 5-1/4"
Duty Continuous Shaft Dia. 1/2" Capacitor Required 2MDV6 Mounting Stud Pattern 3-5/8" x 3-5/8" Stud Size 8-32 Nameplate RPM 1075 Ins. Class F Stud Quantity 4 HP 1/3 Motor Bearings Ball Body Dia. 5-11/16" Full Load Amps 1.2 Motor Shaft Design Double-Flat Country of Origin (subject to change) Multiple
